Eye blinking setting

This section describes how to set up the blink control on the Editor side when you want to control blink on Cubism SDK.



Preparation for blink setting

If you want to control “Eye blinking” on the SDK, you need to make settings on the model workspace in advance.
Select the model file for which you want to set the blink and open the “Settings for Eye Blinking and Lip-sync” dialog box.
Check the items you wish to set.

(“Modeling” in the main menu -> Parameters -> Settings for Eye Blinking and Lip-sync)



Next, create a new animation file and make sure “Eye blinking” is set in the model's track property group.

POINT
If a model file (.cmo3) associated with the animation file (.can3) has “Settings for Eye Blinking and Lip-sync” later,
the model file must be reloaded.
See Reloading Model Files on the “Loading and Placing Models” page for more information.





About Blink Settings

(1) Eye blinking:

Here, instead of setting the numerical value of the parameter, you set the “percentage” to be multiplied by the “eye opening/closing”.
Blink can be multiplied from 0 to 1.0, with 1.0 being the maximum value for the currently set parameter.
(0 for closed eyes, 1.0 for maximum current opening)

(2) Effects:

You can set what percentage of the effect will be multiplied by the percentage set by the blink of an eye.
The effect can be set in the range of 0 to 100, with 0 being disabled.
Basically, it should be set at 0 or 100 and used only to temporarily disable the effect.



When the blink setting is made, the eye performance (1) added to “Eye Open/Close” is blended with the content of the blink setting (2) by multiplication.
Let's check how they will be multiplied.

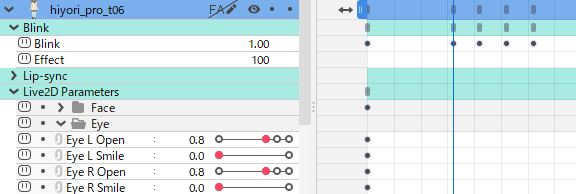

The parameter values for “left eye open/close” and “right eye open/close” (1) in the first frame of the reference image above are both set to “0.8”. (Not fully opened)

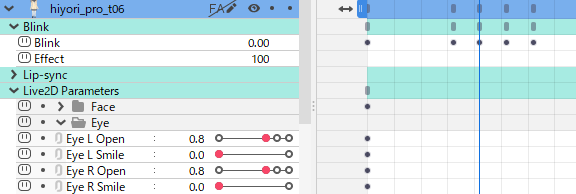

When the blink setting (2) is multiplied to it, the result is blended as shown in the figure below.

 No. Frame Position Eye opening/closing x blinking (percentage) Multiplication Result
1 0.8 x 1.0 0.8
2 0.8 x 1.0 0.8
3 0.8x0 0
4 0.8x0 0
5 0.8 x 1.0 0.8

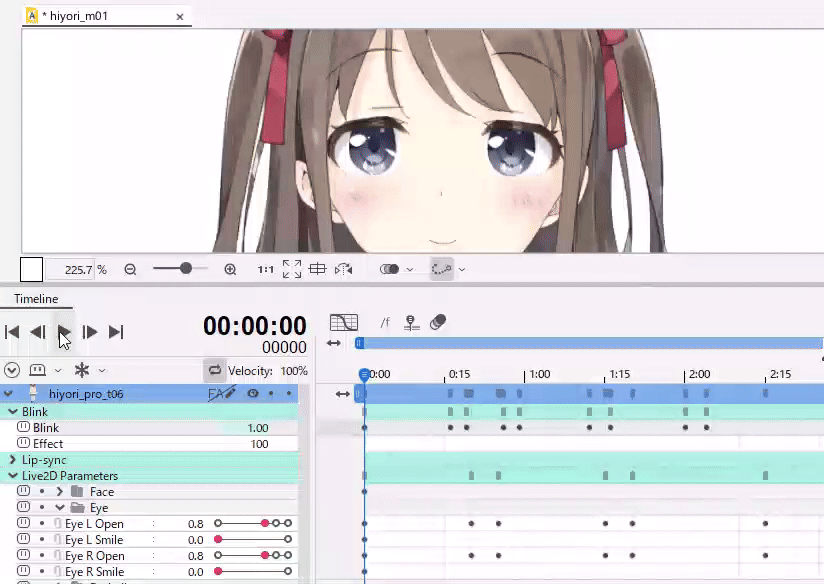

The “left eye open/close” and “right eye open/close” parameters are only keyed at 0.8 (eyes not fully open) on the first frame, but
the value of the blink setting is now multiplied by the keyframe of the parameter, resulting in a blinking behavior.

Therefore, by setting the blink setting, you can add eye acting to the parameters in a sequence of squint -> look up -> default -> squint, and so on.

It will be possible to set only blink movements at the desired timing.
(Blink setting is set only at 0 or 1.0)

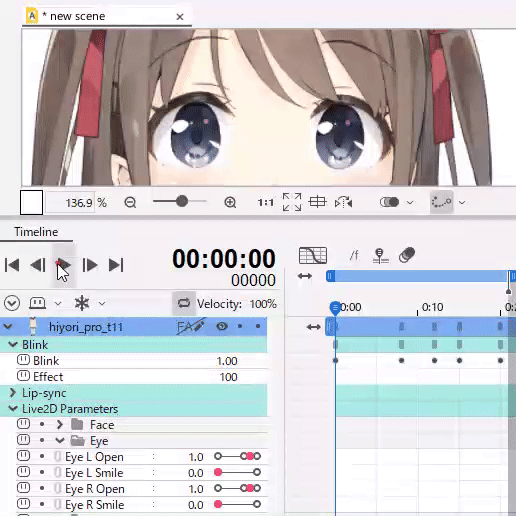

If you do not set any keys in the parameter part of the model, but only the blink setting,
the automatic default position is the maximum opening.
(The default value for eye opening/closing in the model is set to 1.0)





POINT
For video production, no special blink/lip-sync settings are required.
However, if you plan to incorporate the model into an SDK, it is recommended that you set up the model in advance to allow for a wider range of expression
later.
