Parameter Adjustment

(Updated 11/15/2018)

This section describes how to adjust the assigned parameter values.



Display pop-up for adjustment

Clicking on the slider of a parameter pops up several buttons.

Move the mouse cursor over ▼ on the far right and four buttons will appear.
From there, parameter values can be adjusted.





Choose

Click the [Choose] button to select an object for which parameters have been set.
This is useful for batch modification of parameter values.





Reflect

The key value of the parameter is inverted and set.
 This is useful for correcting parameters that have had their values reversed.

The following is an example of a case in which the parameters for opening and closing the mouth have been set to open at “0” and close at “1” as shown below.

Opening and closing the mouth : 0
Opening and closing the mouth : 1

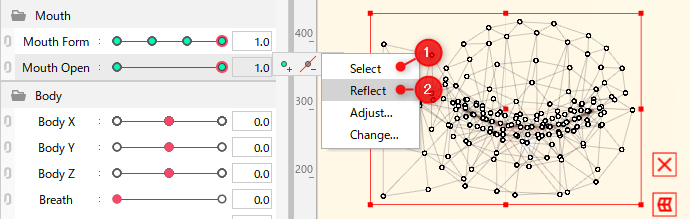

First, click the [Choose] button (1) to select the object to be adjusted, then click the [Reflect] button (2).

In this way, the “0” state is set to “1” and the “1” state is set to “0”.

The correct correction was made with “0” to close the mouth and “1” to open the mouth.

Opening and closing the mouth : 0
Opening and closing the mouth : 1





Bulk Reflect

The key values of parameters can be inverted in a batch.

Click the hamburger button in the [Parameter] palette, then click [Bulk Reflect].
A dialog box for batch inversion settings will appear. Check the parameters you wish to invert and click [OK].
(Unchecking “All” will uncheck all selections.)





Adjust

You can move key values that have already been set.
Clicking the [Adjust] button displays the [ADJUST VALUE] dialog box.

Key values can be moved by entering the changed value.

For example, as shown in the figure below, the key value can be changed by replacing it or reducing the key value to make it more flexible.
  1. Replacing key values.
  2. Change key value.

The figure below reflects the changes.
You can see that the shape of the “0” has changed and the key value has moved.





Change

You can change one assigned parameter to another.

Clicking the [Change] button displays the Change Parameters dialog box.
Then, select the parameter to be changed.

Thus, we were able to change the parameter to “right eyebrow deformation”.

Arrange Parameter Configuration for Selected Object

Unify parameter configurations for selected objects (curves, images, coordinate systems).
For example, when an object A and B have the following parameter configurations,

A Angle X = { -30 , 0 , 30 }
B Smile = { 0 , 1 }

both A and B have angles X = { -30 , 0 , 30 } & smile = { 0 , 1 }.
